Quick Answer
A sanding belt size is its width times its length in inches, and the machine fixes both numbers: portable hand-held sanders commonly run 3x21, 3x24 or 4x24 belts, benchtop belt/disc combos run 4x36, knife-maker grinders run 2x72, and floor-standing backstand grinders run long belts such as 3x132. These are distinct, non-interchangeable formats, so there is no rounding up or down. If your old belt snapped, lay it flat and measure end to end for the length and across for the width. If there is no belt at all, run a non-stretch string around the roller path and measure the string.
How belt sizing works
A sanding belt is a loop of coated abrasive: a cloth backing carrying grain in a resin make/size coat, slit to width, cut to length and joined into an endless loop at a splice. The size designation is simply the width of that strip times the finished loop length, in inches. A 3x21 belt is 3 inches wide and 21 inches around; a 2x72 belt is 2 inches wide and 72 inches around.
The machine decides both numbers. The distance around the drive wheel, idlers and tensioner sets the loop length, and the roller face sets the width the belt can track on. That is why 2x72, 3x21, 3x132 and 4x36 are distinct, non-interchangeable formats rather than loose categories. A belt that is too long will not tension and one too short will not go on; cloth backings survive grinder tension by refusing to stretch.
Sanding belt size chart: which belt fits which sander
The chart matches each common belt format to its machine class, with published power and speed figures (Belt Sanding Technique).
| Belt size (in) | Machine class | Typical power | Typical speed | Best at |
|---|---|---|---|---|
| 1/4" to 3/4" wide, 12" to 24" long (e.g. 1/2 x 18) | File / finger belt sander | Small | Moderate | Slots, tight contours, spot welds, around tube and pipe |
| 3 x 21, 3 x 24, 4 x 24 | Portable hand-held belt sander | ~0.5–1 HP | Fixed, often ~1,500–2,000 SFPM | Wood surfaces, floor and panel sanding |

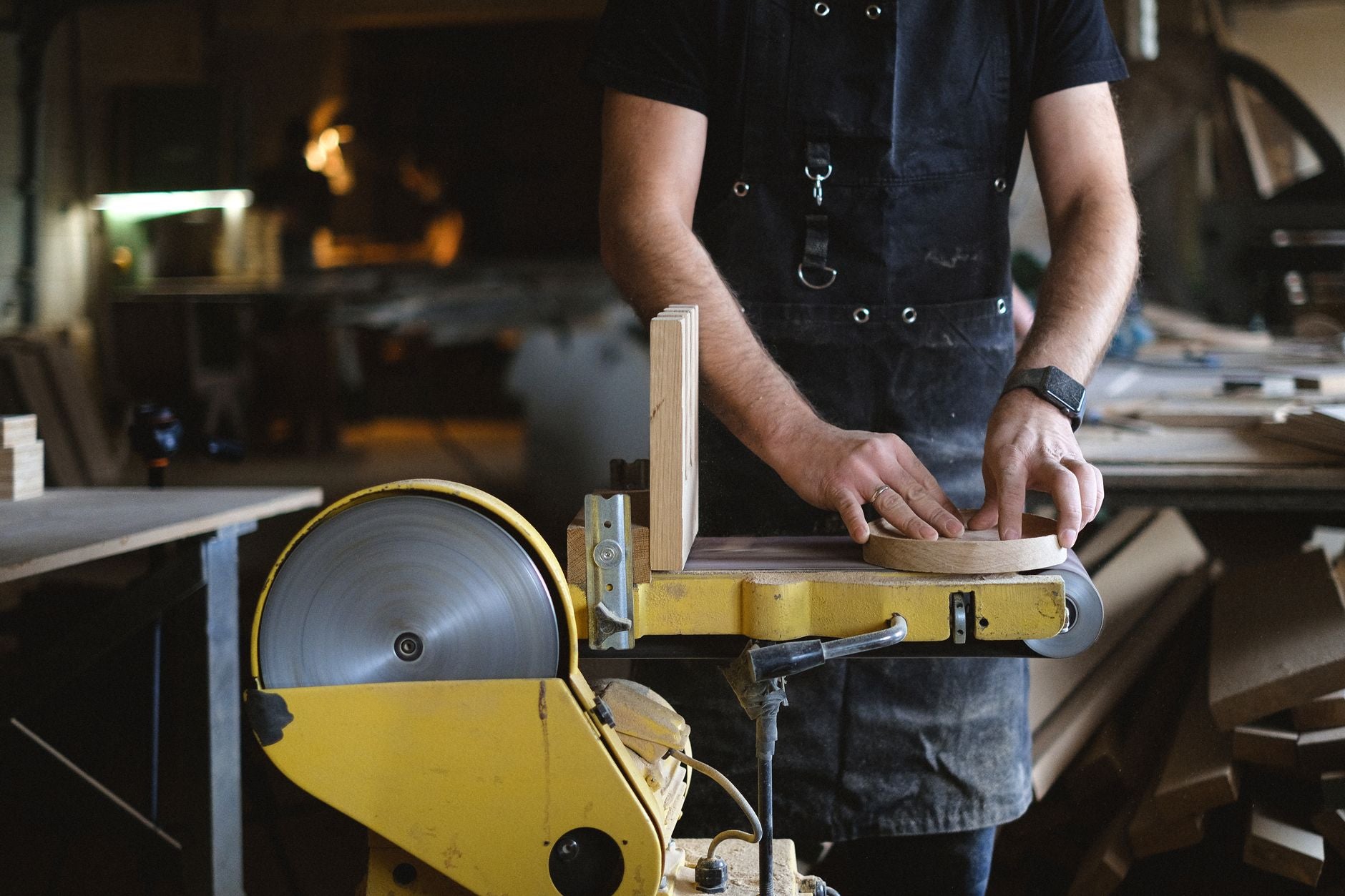

| 4 x 36 (plus a 6"–8" side disc) | Benchtop belt/disc combo | ~0.3–0.75 HP | ~3,600 SFPM, single speed | Hobby wood and metal, light deburring |
| 2 x 72 | Knife-maker / small-shop belt grinder | 0.5–3 HP, 2 HP+ for heavy stock removal | 0–7,000+ SFPM variable (VFD) | Bladesmithing, small-shop metal finishing |
| 3 x 132 and similar long 4"-wide belts | Backstand / pedestal grinder | Heavy 3-phase floor unit | ~6,300 SFPM | Weld cleanup, castings, production deburring and blending |
| Wide belts up to 25" x 60–110" | Wide-belt machinery | Industrial | Machine-specific | Furniture and flooring panel sanding |
The 2x72 deserves its own line of explanation: it is the de-facto standard for knife makers because the long loop spreads heat over a large abrasive surface, so the belt runs cooler and lasts longer while the machine still fits a compact shop frame. Most of the everyday formats above are stocked in our sanding belts collection.
What about 1x30, 2x42 and 6x48?
Retail listings carry plenty of other formats, 1x30, 2x42 and 6x48 among them. The same rule applies to every one of them: the size is width times length in inches, the machine fixes both numbers, and formats do not interchange. Match the size in your machine's manual digit for digit; if the manual is long gone, measure as described below.
One safety note on combo machines: a belt running over rollers is a lower-energy failure mode, but the bonded-wheel or disc side of a combination machine falls fully under the abrasive-machinery guarding rule OSHA 29 CFR 1910.215, which requires the work rest within 1/8 in of the wheel and the tongue guard within 1/4 in (OSHA 1910.215). More on the wheel-side rules in our guide to grinding wheel max-RPM safety.
How to measure an old or snapped belt
Belts rarely wear through mid-span; they let go at the splice, the joint where the two ends of the strip are bonded into a loop. The splice is the belt's thinnest, most stressed cross-section, and the joint has a shelf life of about a year, so an old spare snapping at the joint with fresh-looking grain is normal aging, not a defect. That failure mode is good news for measuring:
- Snapped belt in hand. The break is at the joint, so the belt opens back into the original flat strip. Lay it flat, measure end to end for the loop length and across for the width, and check the result against the chart above.
- Intact belt, markings worn off. Measure the width directly. For the length, mark a spot on the backing, roll the belt along a tape measure through one full revolution and read where the mark comes around.
- No belt at all: the string method. Set the tension roller to its working, mid-travel position, run a non-stretch string around the roller path where the belt would sit, pull it snug, mark where the ends meet and measure the string flat. The roller face gives the width.
- Sanity check. The number should land on or very near a standard format; if it falls between two stock sizes, re-check the tensioner position first.
The string measurement is shop practice rather than a published standard, so treat the result as a starting point and confirm against the machine documentation whenever you can.
Speed check before you buy
Once the size is fixed, check speed. Belt machines are specified in surface feet per minute, not RPM: SFPM = RPM x 0.262 x drive-wheel diameter in inches, so an 1,800 RPM motor on a 4 in drive wheel gives roughly 1,886 SFPM. Published working bands by material: wood 2,940–4,920 SFPM; stainless and tool steel 3,540–5,880; aluminum and zinc 3,540–5,880; cast iron and carbon steel 4,920–8,820; hardened steel 1,560–2,940. Running faster than the material tolerates burns wood, blues stainless and can draw the temper out of hardened steel, so set speed by the workpiece, never by the machine's top end.
Grit, grain and backing once the size is fixed
Grain first. Aluminum oxide is the all-round workhorse for wood, non-ferrous metal and some steels, and the only grain commonly stocked in fine 240–600 grits. Zirconia suits hardwood, steel and heavy stock removal. Ceramic alumina cuts coolest on heat-sensitive metals and hard alloys and is usually offered around 24–120 grit. Silicon carbide covers glass, plastic, rubber and stone. The full decision logic is in our sanding belt selection guide.
Grit next. Wood work typically roughs at 80–120 and steps to 220 and beyond; ferrous metal starts coarse at 36–60 for stock removal; non-ferrous metals such as aluminum and brass sit at 120–320. For the wood ladder in detail, see woodworking sanding grit progression.
Watch the grading scale when mixing belt brands in one progression. CAMI and FEPA-P numbers roughly track through the coarse grits but diverge fast in the fines: a CAMI 400 is far coarser than a P400, and a CAMI ladder of 120-280-360-400-600 corresponds in particle size to FEPA P120-P320-P600-P800-P1200. Match the standard, not just the number, or you will skip or repeat an effective step; the two scales are decoded in FEPA vs CAMI grit scale.
Backing weight sets durability. J-weight cloth is the lightest and most flexible; X-weight (~6 oz/yd²) is stiffer; Y-weight (~8 oz/yd², usually full polyester) is the common heavy backing paired with coarse zirconia and ceramic belts for heavy stock removal. Weld shops running backstands and 2x72s will find belts alongside our metal fabrication essentials.
Run direction: the arrow and the splice
Butt-spliced belts, the most common modern joint, sit edge to edge over a reinforcing tape and run in either direction, so the arrow can be ignored and the belt flipped to even out wear or clear a loaded face. Lap (overlap) splices are directional: run them with the printed arrow or the leading lip of the joint can catch and tear. Storage matters as much as direction: belts kept damp, hot or curled go brittle at the splice and come apart while the abrasive is still good, so store them dry and rotate stock.
Need belts now? Common sizes and grits ship from Whitby, Ontario stock; if you are restocking the whole shop, start with the best sellers.
FAQ
What do the numbers in a sanding belt size like 3x21 mean?
Width times loop length in inches: a 3x21 belt is 3 inches wide with a 21-inch loop. The machine fixes both numbers, so match them exactly.
Can I use a 3x24 belt on a 3x21 sander?
No. Belt formats are non-interchangeable: a 3x24 loop is 3 inches too long for the roller path and will not tension, and a shorter belt will not go on. Buy the exact size the machine specifies.
How do I measure a sanding belt that snapped?
Belts almost always fail at the splice, so the snapped belt opens back into its original flat strip. Lay it flat and measure end to end for the loop length, then across for the width, and check the result against a standard size.
How do I find my belt size when I have no belt at all?
Set the tension roller to its working position, run a non-stretch string around the roller path where the belt would sit, mark where the ends meet and measure the string flat. Measure the roller face for the width, then match to the nearest standard format.
Does the arrow printed on a sanding belt matter?
On lap-spliced belts, yes: run with the arrow or the joint's leading lip can catch and tear. Butt-spliced belts, the most common modern type, run in either direction.
Why is 2x72 the standard belt size for knife grinders?
The long 72-inch loop spreads heat over a large abrasive surface, so the belt runs cooler and lasts longer, while the format still fits a compact machine frame. It is also the format offered in the widest choice of grain and grit.
